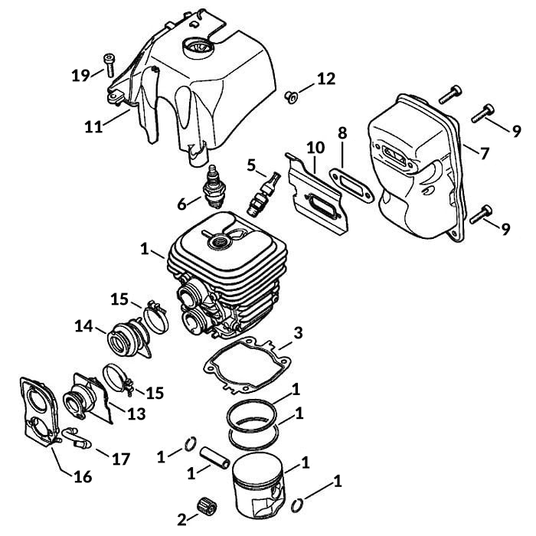

Stihl TS410 Parts Diagram - Cylinder & Piston Assembly

Ref.	Image	SKU	Description	Price	Buy
1		4238 020 1209	Genuine Stihl TS410 TS420 Cylinder & Piston (50mm Bore)	€386.35 Ex Vat
2		9512 003 2344	Needle Cage 10x14x13	€13.09 Ex Vat
3		4238 029 2300	Genuine Stihl Cylinder Base Joint Gasket Fits TS410 TS420	€5.37 Ex Vat
4		9022 371 1073	Spline Screw - 9022 371 1073	€1.74 Ex Vat
5		4238 020 9400	Genuine Stihl TS410 TS420 Decom Valve	€51.57 Ex Vat
6		BPMR7A	BPMR7A NGK Spark Plug fits Stihl & Husqvarna - 4626	€4.74 Ex Vat
7		4238 140 0610	Genuine Stihl TS410 TS420 Muffler Exhaust	€118.28 Ex Vat
8		4238 149 0600	Genuine Stihl TS410 TS420 Exhaust Muffler Gasket	€3.63 Ex Vat
9		9022 371 1020	Genuine Stihl TS400 Screw	€1.42 Ex Vat
10		0000 141 3200	Genuine Stihl TS410 TS420 Exhaust Heatshield Cooling Plate	€7.72 Ex Vat
11		4238 080 0900	Stihl TS410 Cylinder Cover	€21.29 Ex Vat
12		9991 003 5087	Sleeve - 9991 003 5087	€0.95 Ex Vat
13		4238 141 2203	Genuine Stihl TS410 TS420 Carburettor Manifold	€72.23 Ex Vat
14		4238 141 2202	Manifold	€64.34 Ex Vat
15		9771 021 2536	Hose Clip - 9771 021 2536	€3.63 Ex Vat
16		4238 140 2200	Genuine Stihl TS410 Carb / Cylinder Flange	€28.38 Ex Vat
17		0000 141 8600	Genuine Stihl TS410 Impulse Hose	€8.98 Ex Vat
18		4238 007 1003	Gasket Set - 4238 007 1003	€33.28 Ex Vat
