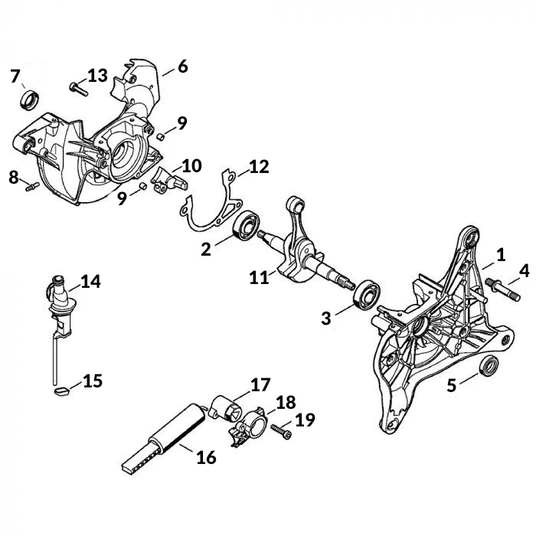

Stihl TS410 Parts Diagram - Crankcase Assembly

Ref.	Image	SKU	Description	Price	Buy
1		4238 020 2909	Stihl TS410 TS420 Crankcase (Clutch Side)	€261.54 Ex Vat
2		9503 003 0359	Stihl TS410 TS420 Crankshaft Bearing - New Type	€0.00 Ex Vat
3		9503 003 0360	Stihl TS410 TS420 Crankshaft Bearing	€25.54 Ex Vat
4		0000 953 6606	Crankcase Stud for Stihl TS410 TS420 Disc Cutter	€0.00 Ex Vat
5		9630 951 1696	Genuine Stihl TS410 TS420 Oil Seal Crankcase Side (15 x 26 x 7mm)	€20.62 Ex Vat
6		4238 020 2613	Stihl TS410 TS420 Crankcase Fan Side	€269.23 Ex Vat
7		9640 003 1570	Genuine Stihl TS400 TS410 TS420 Crank Seal (Small)	€10.31 Ex Vat
8		0000 988 5211	Connector - 0000 988 5211	€3.08 Ex Vat
9		0000 988 8600	Sleeve - 0000 988 8600	€1.85 Ex Vat
10		4238 448 1200	Lead Retainer	€5.69 Ex Vat
11		4238 030 0400	Genuine Stihl TS410 TS420 Crankshaft	€523.38 Ex Vat
12		4238 029 0500	Stihl TS410 Gasket	€2.46 Ex Vat
13		9022 371 1020	Genuine Stihl TS400 Screw	€1.38 Ex Vat
14		4238 141 5400	TS410 Hose	€12.31 Ex Vat
15		4238 141 1800	Stihl TS410 TS420 Fuel Hose Sleeve	€0.00 Ex Vat
16		4238 660 0400	Stihl TS410 Belt Tensioner Assembly	€26.00 Ex Vat
17		4224 664 2100	Genuine Stihl TS410 TS420 Clamping Lever	€4.23 Ex Vat
18		4224 664 4200	Genuine Stihl TS410 TS410 Clamping Lever Cover	€5.38 Ex Vat
19		9075 478 4159	Pan Head Self Tapping Screw - 9075 478 4159	€1.38 Ex Vat
