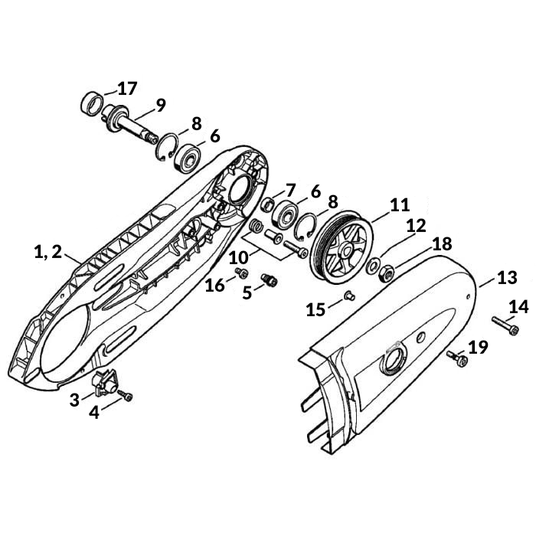

Stihl TS410 Parts Diagram - Cast Arm Assembly

Ref. Image SKU Description Price Buy
1 Genuine Stihl Blade Shaft Bearing Fits Stihl Disc Cutters 6201-2 9503 003 6440 Genuine Stihl Blade Shaft Bearing Fits Stihl Disc Cutters 6201-2 €12.31 Ex Vat
2 9443 825 7130 Hollow Rivet €2.31 Ex Vat
3 9456 621 3600 Circlip €1.85 Ex Vat
4 9291 021 0200 Blade Shaft Washer for Stihl Cut Off Saws €0.77 Ex Vat
5 Blade Shaft Nut for Stihl Cut Off Saws 9211 260 1350 Blade Shaft Nut for Stihl Cut Off Saws €1.23 Ex Vat
6 9074 478 3025 Pan Head Self Tapping Screw - 9074 478 3025 €1.23 Ex Vat
7 9022 341 1070 SPLINE SCREW IS-M5x30x22 €1.69 Ex Vat
8 9022 341 0910 Spline Screw - 9022 341 0910 €1.23 Ex Vat
9 Stihl Cast Arm fits TS410 4238.701.0203 Stihl Cast Arm fits TS410 €153.85 Ex Vat
10 4238 710 9500 Genuine Stihl TS410/420 Blade Adjusting Screw Assembly €6.00 Ex Vat
11 Genuine Stihl TS410 TS420 Poly V-Belt Pulley 4238 760 8500 Genuine Stihl TS410 TS420 Poly V-Belt Pulley €107.69 Ex Vat
12 4238 701 0202 Cast Arm €187.38 Ex Vat
13 Genuine Stihl TS410 Belt Guard 4238 700 8107 Genuine Stihl TS410 Belt Guard €41.54 Ex Vat
14 4238 691 0200 Limit Stop €1.54 Ex Vat
15 Blade Shaft for Stihl TS410 TS420 4224 704 0502 Blade Shaft for Stihl TS410 TS420 €118.46 Ex Vat
16 4224 691 0100 Stop Pin €6.62 Ex Vat
17 Blade Shaft Ring fits Stihl TS350AVE, TS350, TS360, TS400, TS410, TS420, TS460, TS510, TS700, TS760, TS800 0000 961 1206 Blade Shaft Ring fits Stihl TS350AVE, TS350, TS360, TS400, TS410, TS420, TS460, TS510, TS700, TS760, TS800 €1.85 Ex Vat
18 0000 708 4200 Shaft Sleeve €11.08 Ex Vat
